Overview

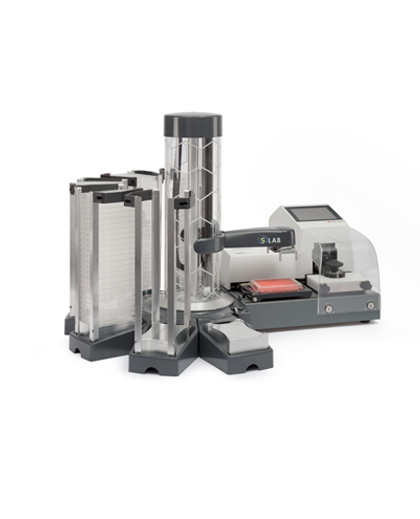

Product Name:Automated Plate Handler SLAB


Many laboratories, needing to upscale their work flow, have found laboratory automation a costly and difficult option, S-LAB changes this. S-LAB represents a new approach by utilising the principles of laboratory robotics ...

Features


Technical Parameters


Dimensions Height: 595mm, Maximum width: 504mm, Maximum depth: 648mm
(with 6 x S-LABTM base units connected)
Capacity Up to 100 standard microplates (unlidded)
Plate exchange time Average plate exchange time is 21 seconds
Microplate gripper Allows presentation of microplates in either portrait or landscape orientation
Plate detection Photo-optical plate sensor
Barcode reader Optional barcode reader, compatible with industry standard barcode formats
User interface User-friendly web application available via PC or mobile devices
Connectivity 1 x Ethernet RJ45
2 x USB 2.0 Ports
Access to the S-LABTM system is through a fixed wire connection to the Ethernet port
No external PC required
Instrument connectivity: USB, RS232 using USB/RS232 adaptor (supplied)
or SiLA Web Service Provider
Remote control: RESTful API
Compliance CE and cETLus marked

Application field


Main accessories

Six slot-in S-LABTM base units are supplied and can be mounted around the plate handler. Each base unit can
accommodate the following S-LABTM storage components.
Stacks
(Last in first out)
25 x unlidded ANSI SLAS 1-2004 microplates (max height 15mm)
20 x lidded ANSI SLAS 1-2004 microplates (combined height 17mm)
Plate park A single microplate position to re-grip the microplate,
improving plate loading accuracy and allowing barcode reading.
Lid park A single microplate position with 2 x lid shelv es to store lids
