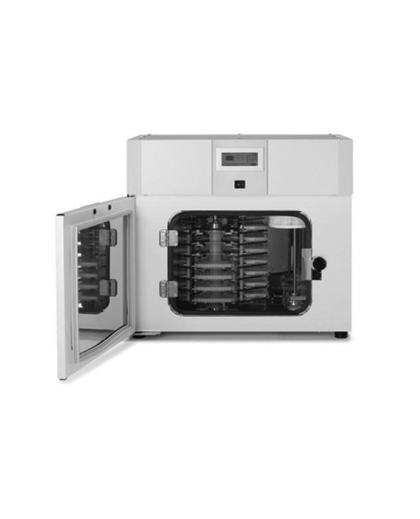

Product Name：Automated CO2 incubator

Details:

Suitable for combination with Cell Imager, and Automated Liquid handler system.
Varies 3 range of plate capacity, 48/100/150 plate.
Precise environment control, Temperature and CO2, Low O2 (Optional).
HEPA filter inside, it has ISO Class5 (CLASS100) air quality within 10 min.
Built-in Color LCD touch screen, all of management and control can be operated.
Cassette hotel is easily remove/change from the unit.
Not only microplate, varies culture vessel are available, as Petri dishes, T25/T75/T175 Flasks.
Automated shutter is able to minimize environment deviation in the chamber.
Communication Interface: RS232 (RS485), Ethernet.

Option/Specialties:

Model	NR48	NR100	NR150
Power consumption	500VA	600VA	800VA
Outer dimensions (mm) *	740(W) × 607(D) ×668(H)	740(W)×607(D)×1030(H)	980(W)×816(D)×1030(H)
Inner dimensions (mm)	620(W) × 475(D) ×391(H)	620(W)×475(D)×721(H)	857(W)×653(D)×721(H)
Chamber volume (L)	115	210	400
Approx. Weight (kg)	85	120	200
Slider Length (mm)	240
Body material /paint	Chamber: SUS304 Exterior: Cold-rolled steel / Baked powder coat finish
Outer door	Left hinged / Right hinged (Factory option)
Humidification	Natural evaporation with water pan (Ultrasonic Humidifier is available)
Air circulation	Circulation with DC blower (through a HEPA filter)
CO2 gas supply	99.7% or more/Supply gas pressure = 0.1 ±0.05MPa
N2 gas supply	99.9% or more/Supply gas pressure = 0.1 ±0.05MPa
Number of slots	12 slots / 4 pos.	25 slots / 4 pos.	25 slots / 6 pos.
MTP Capacity	48	100	150
Type of plate cassette	Short cassette	Long Cassette	Long Cassette
Environment	Temp.15–30˚C / RH 20–70%

Items		Description
Temperature control	Sensor	Pt100 (Class A)
	Control range (˚C)	Room temperature +8 – +30 (up to 50 ˚C)
	Control accuracy (˚C)	(1) 37.0˚C ±0.5˚C (2) RT+30.0˚C (Up to 50˚C)
	Uniformity (˚C)	Control point (center of the chamber) ±1.0
CO2 control	Sensor	NDIR
	Control range (%)	0–20.0
	Control accuracy (%)	±0.5
O2 control	Sensor	Zirconia system
	Sets range (%)	1.0–20.0
	Control accuracy (%)	±1.0
Average time for Robotics		Approx. 25 sec. for loading/unloading
