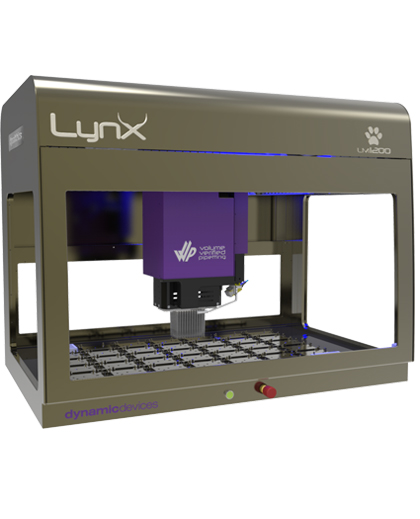

Product Name：Liquid Handling Robotic Platform Lynx

SIZE

(LxWxH)

28” x 26” x 26”

TheLynx’s high precision 96 & 384 Standard Volume (SV) syringe based pipettingtools allow the precise and rapid transfer of samples across 24, 96, 384 or1536 well microplates. Using our syringe based pipetting technology, developedover the past two decades, the Lynx provides a highly economical resource inwhich to facilitate same volume liquid transfers across rows, columns or entire24, 96, 384 or 1536 well plates.

√ Syringe based pipetting tools

√ Identical volume in each channel

√ Interchangeable 24, 96 & 384pipetting core inserts

√ Efficient solution for mostliquid handling applications

√ SM – Solid Mandrel tip loadingtechnology

√ Tip pickup for single well, rowor column

√ Custom pipetting core insertsavailable

The versatility of any liquidhandling platform is dependent upon the availability of the pipetting tools andcombinations as well as the possible configurations with platform sizes andtransportation options. The Lynx Series of Liquid Handlers offers the mostdiverse configurations of pipetting tools:  Two Volume Verified Pipetting tools, one with 96 independent channels(96 VVP) and one with 8 independent fixed channels (f8 VVP), along with ourstandard syringe based pipetting tools with 96 (96 SV) or 384 (384 SV)channels.

√ 96 & 8 Channel VVP toolsavailable

√ Pipette columns or rows fordilution methods

√ Uses clear tips for multichannelLLD

√ SM – Solid Mandrel tip loading

√ Volumetric transfers

√ Independent volumes for eachchannel √ Full pipetting data tracking

√ Full pipetting liquid diagnostics

96 VVP Pipetting Tool

With the flagship 96 VVP Pipetting Tool,96 independent volumes of 96 different liquids can be transferred without theneed for calibration. Accomplish applications like DNA Normalization andCompound Dissolution on an entire plate in a single dispense. In addition,activate pipetting diagnostics for challenged samples in each individual tip.Pipette complex samples like whole blood and plant seed homogenates withclot/clog detection and on-the-fly correction.

f8iZ Independent Spreadable TipPipetting Tool

With limited release to production labsin 2019, the next generation f8iZ VVP pipetting arm has 8 channels (9 mmspacing) with independent Z for individual access to non-microplate tubes andwells. The f8iZ VVP uses the same clear tips as the other VVP tools; hasindependent Liquid Level Detection (LLD); a volume range from 1 to 1250uL aswell as full VVP pipetting diagnostics for each channel..

Fixed-8 VVP Pipetting Tool

The Lynx’s entry-level VVP tool (f8)transfers 8 independent volumes of liquid with verified volume reporting andfull pipetting diagnostics. For samples within microplate format you can nowvalidate your transfers with our fixed-8 tip VVP Pipetting Tool. By eliminatingthe independent spreading and Z axis capabilities, multiple axis control isreduced, providing a highly economical yet functional VVP pipetting tool.

96 ST Syringe Pipetting Tool

Our 96 SV Pipetting Tool allows thetransfer of wells, rows, columns or entire 96 well plates across 96, 384 oreven 1536 well plates. In this

SV syringe based design, identicalvolumes are transferred in every channel. The dual disposable tip mandreldesign provides options for low and high volume configurations. Withreplaceable CORE insert pipetting blocks, the 96 SV syringe pipetting tool isthe most economical for high throughput liquid handling.

384 ST Syringe Pipetting Tool

With the high loading force required toload 384 simultaneous tips, the Lynx is specifically engineered to load thesetips from any worktable position. No specific loading areas or specialty tiploading tools required. Simply place the 384 tip box(es) inany microplate position and run your method with the versatility you expectfrom your Lynx LM Series Workstation.

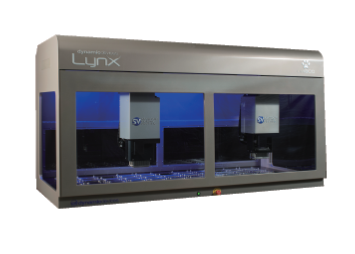

Dual Arm Configurations

With the capability of having twopipetting arms with any combination of available 96 or 384 pipetting

tools, the increased throughput

and efficiency possible in a singleplatform makes the Lynx one of the most versatile and configurable liquidhandling workstations in today’s market.
