概览

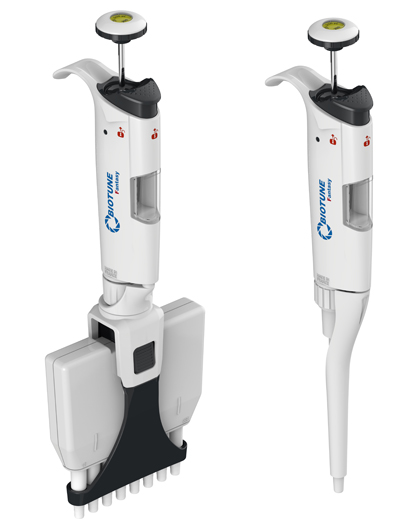

产品名称：柏奥通手动移液器

产品特点

▪ 新人体工程学设计:
▪ 轻便耐久, 均衡操作, 适用于左右手操作, 按钮省力
▪ 独特的专利设计的上锁/解锁按钮和卸吸头按钮于一体，单手即可操作
▪ 高准确度和精确度
▪ 整支高温高压灭菌
▪ 符合GLP规范：单独序列号，不同量程不能颜色按钮，校正报告
▪ 移液范围：0.2ul-10ml
▪ 易于维护和维修

技术参数

单通道技术参数

型号 Model	量程范围 volume range (µl)	体积 Volume (µl)	技术参数 SPECIFICATIONS
			系统误差		随机误差
			(µL)	(%)	(µL)	(%)
2	0.2-2	0.2 1 2	±0.026 ±0.030 ±0.033	±13.20% ±3.00% ±1.65%	≤0.013 ≤0.014 ≤0.015	≤6.60% ≤1.40% ≤0.77%
10	1-10	1 5 10	±0.035 ±0.083 ±0.110	±3.50% ±1.66% ±1.10%	≤0.013 ≤0.033 ≤0.044	≤1.32% ≤0.66% ≤0.44%
20	2-20	2 10 20	±0.11 ±0.12 ±0.20	±5.50% ±1.20% ±1.00%	≤0.033 ≤0.055 ≤0.066	≤1.65% ≤0.55% ≤0.33%
100	10-100	10 50 100	±0.39 ±0.44 ±0.80	±3.85% ±0.88% ±0.80%	≤0.11 ≤0.13 ≤0.17	≤1.10% ≤0.26% ≤0.17%
200	20-200	20 100 200	±0.55 ±0.88 ±1.60	±2.75% ±0.88% ±0.80%	≤0.22 ≤0.28 ≤0.33	≤1.10% ≤0.28% ≤0.17%
1000	100-1000	100 500 1000	±3.3 ±4.4 ±8.0	±3.30% ±0.88% ±0.80%	≤0.7 ≤1.1 ≤1.7	≤0.66% ≤0.22% ≤0.17%
5000	500-5000	500 2500 5000	±13 ±17 ±33	±2.64% ±0.68% ±0.66%	≤3.3 ≤5.5 ≤8.8	≤0.66% ≤0.22% ≤0.18%
10ml	1000-10000	1000 5000 10000	±33 ±44 ±60	±3.30% ±0.88% ±0.60%	≤6.6 ≤11.0 ≤17.6	≤0.66% ≤0.22% ≤0.18%

多通道技术参数

型号 Model	量程范围 volume range (μl)	体积 Volume (μl)	技术参数 SPECIFICATIONS
			系统误差		随机误差
			(μL)	(%)	(μL)	(%)
8×10 12×10	0.5-10	0.5 5 10	±0.09 ±0.22 ±0.22	±17.60% ±4.40% ±2.20%	≤0.04 ≤0.11 ≤0.11	≤8.80% ≤2.20% ≤1.10%
8×20 12×20	2-20	2 10 20	±0.11 ±0.22 ±0.40	±5.50% ±2.20% ±2.00%	≤0.09 ≤0.11 ≤0.17	≤4.40% ≤1.10% ≤0.83%
8×200 12×200	20-200	20 100 200	±0.50 ±1.10 ±2.20	±2.75% ±1.10% ±1.10%	≤0.28 ≤0.44 ≤0.55	≤1.38% ≤0.44% ≤0.28%
8×300 12×300	20-300	20 150 300	±1.10 ±1.65 ±3.30	±5.50% ±1.10% ±1.10%	≤0.39 ≤0.66 ≤1.10	≤1.93% ≤0.44% ≤0.37%
